ECO-WORTHY 4 String PV Combiner Box for Solar Panels

ECO-WORTHY 4 String PV Combiner Box for Solar Panels, 10A Rated Current Fuse and Circuit Breakers for On/Off Grid Solar Panel System

With 10A fuse and lighting arreste,lighting protection,reverse-current protecting,rain proof

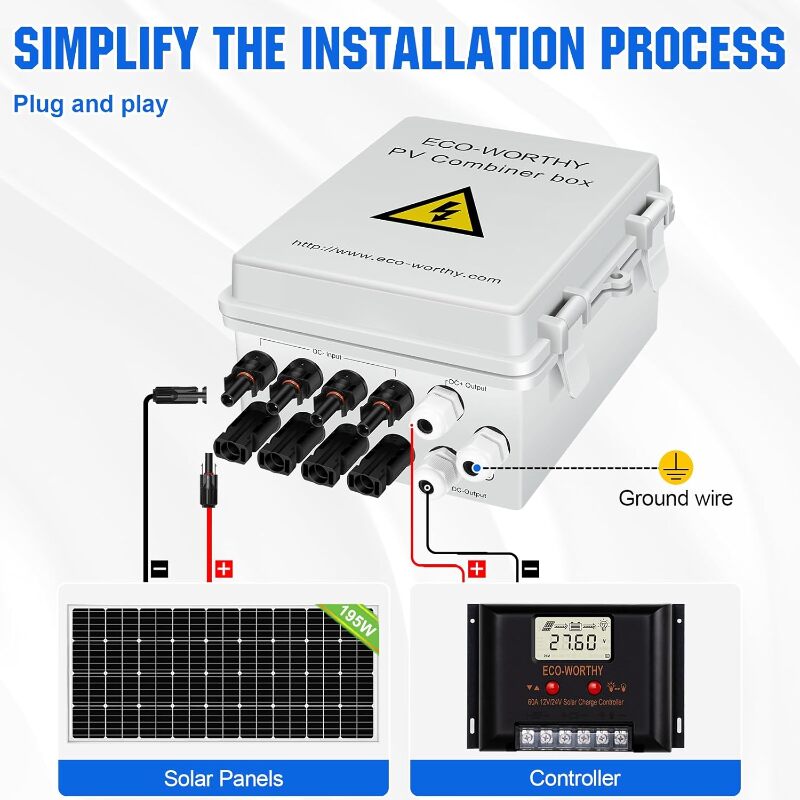

Plug and play,pre-connected cable, very sturdy organized box to combine your solar panels, make your solar panel system connction easier

As long as the current and voltage of a single PV does not exceed 10A/250Vdc, you can connect the combiner box.(E.g. If use the 195W 12V Eco-worthy solar panel, it can support solar panel system up to 780W in 12V system, 1560W in 24V system ,3120W in 48V system.)

Easy installation, with mounting buckle, no key needed to open and close the box, very easy to use. Suit for any regular surface

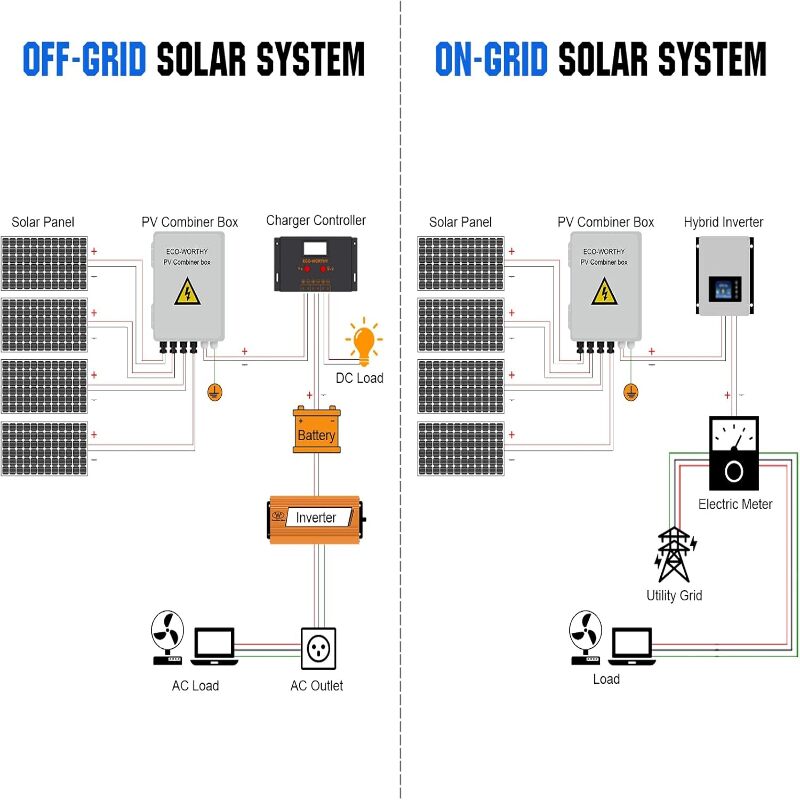

The PV combiner box is suitable for photovoltaic grid-connected and off-grid power generation systems. Its main function is to converge the input of PV array.

It has three protection measures:

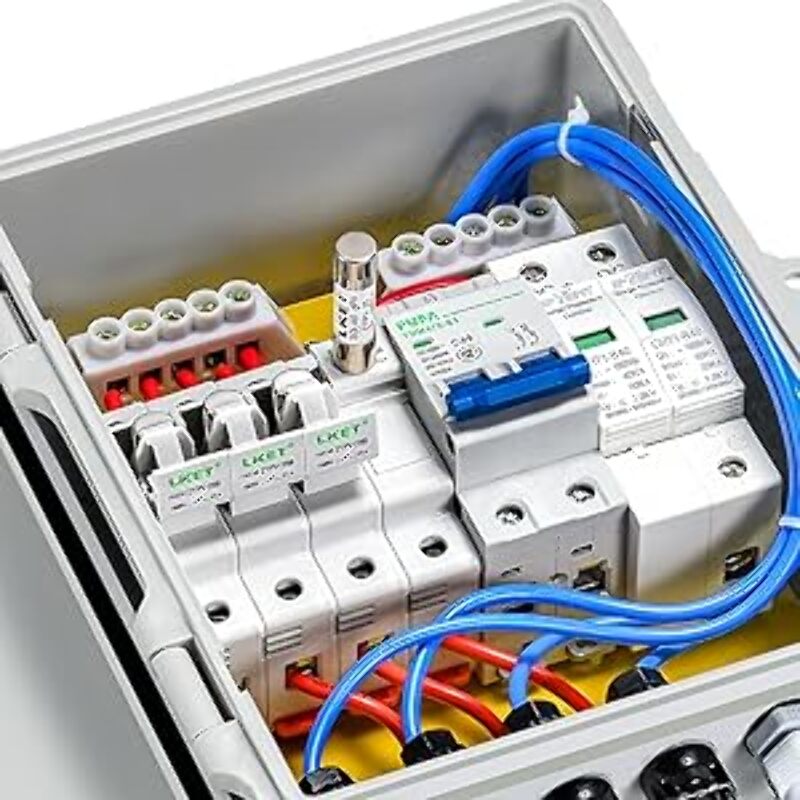

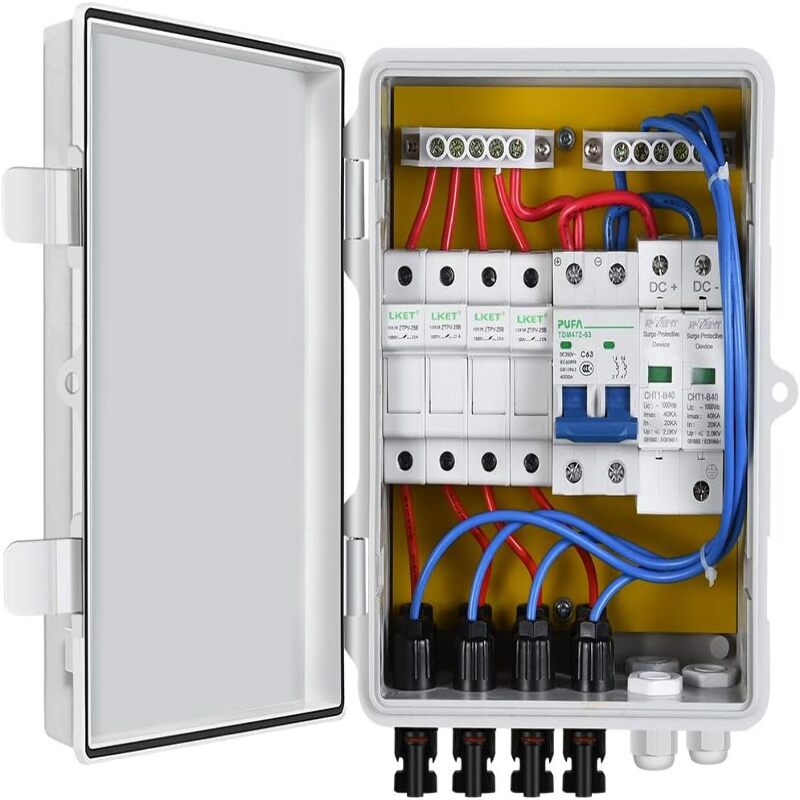

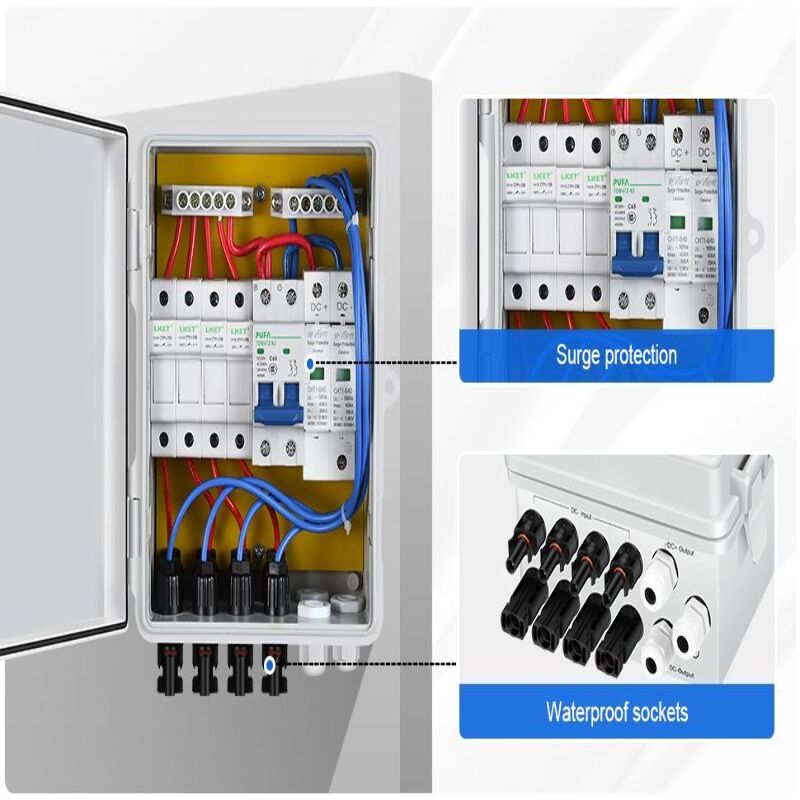

The first: The PV combiner box is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and circuit breaker to provide short circuit fault protection and lightning protection.

The second: It has protect function of over-voltage and over-current so as to avoid damage to photovoltaic panels and inverters when the fault occurs.

The third: The PV combiner box is also used to reduce the connection of the photovoltaic array to the inverter, optimize the system structure, improve the reliability and maintainability of the system, make the photovoltaic system at its best.

Installation and Precautions :

• Check the high-voltage fuses at a regular time to prevent the solar panel from being open after the high-voltage fuses fused.
• The input and output of the PV can not be reversed, otherwise, the post-stage equipment may not work or even damages other equipment.
• When testing or maintaining this equipment, you need to notice that both the input and output port may be charged, please prevent electric shock or damage to other equipment.
• After thunder and lightning, you should check the lightning module, if you found the failure indicator lamps on panel turn to "Red" from "Green", please change it in time.
• The equipment uses M6 screws to fix four mounting holes at the bottom of the PV Combiner Box, which is installed in the ventilated and dry place, please avoid direct sunlight, high ambient temperature, and too wet environment, which will affect the performance of the equipment.
